6mm Galvanized Steel Power Transmission Pole 10kV-220kV
6mm Galvanized Steel Power Transmission Pole 10kV-220kV
Propriétés de base
Lieu d'origine:
Chine
Nom de la marque:
MilkyWay
Attestation:
ISO9001/BV/
Numéro de modèle:
Puissance Polonais en acier de transmission
Propriétés commerciales
Quantité minimum de commande:
1 pcs
Prix:
Négociable
Conditions de paiement:
T / t, l / c à la vue
Capacité d'approvisionnement:
300pcs par jour
Résumé du produit
6mm Galvanized Steel Power Transmission Poles High-performance, long-lasting galvanized steel poles for power transmission applications from 10kV to 220kV. Product Specifications Attribute Value Product Name Galvanized Power Pole Shape Octagonal Or Round Power Capacity 10kV to 220kV Joint of Poles ...
Attributs personnalisés du produit
Mettre en évidence
6mm galvanized steel power pole
,10kV-220kV transmission pole
,galvanized steel transmission pole
Nom de produit:
Puissance Polonais galvanisée
Forme:
Octagonale ou ronde
Capacité électrique:
10 à 220 kV
Joint de Polonais:
Glissez commun
Durée de garantie:
15 ans
Épaisseur:
1 millimètre à 36mm
Description du produit
Spécifications détaillées et caractéristiques

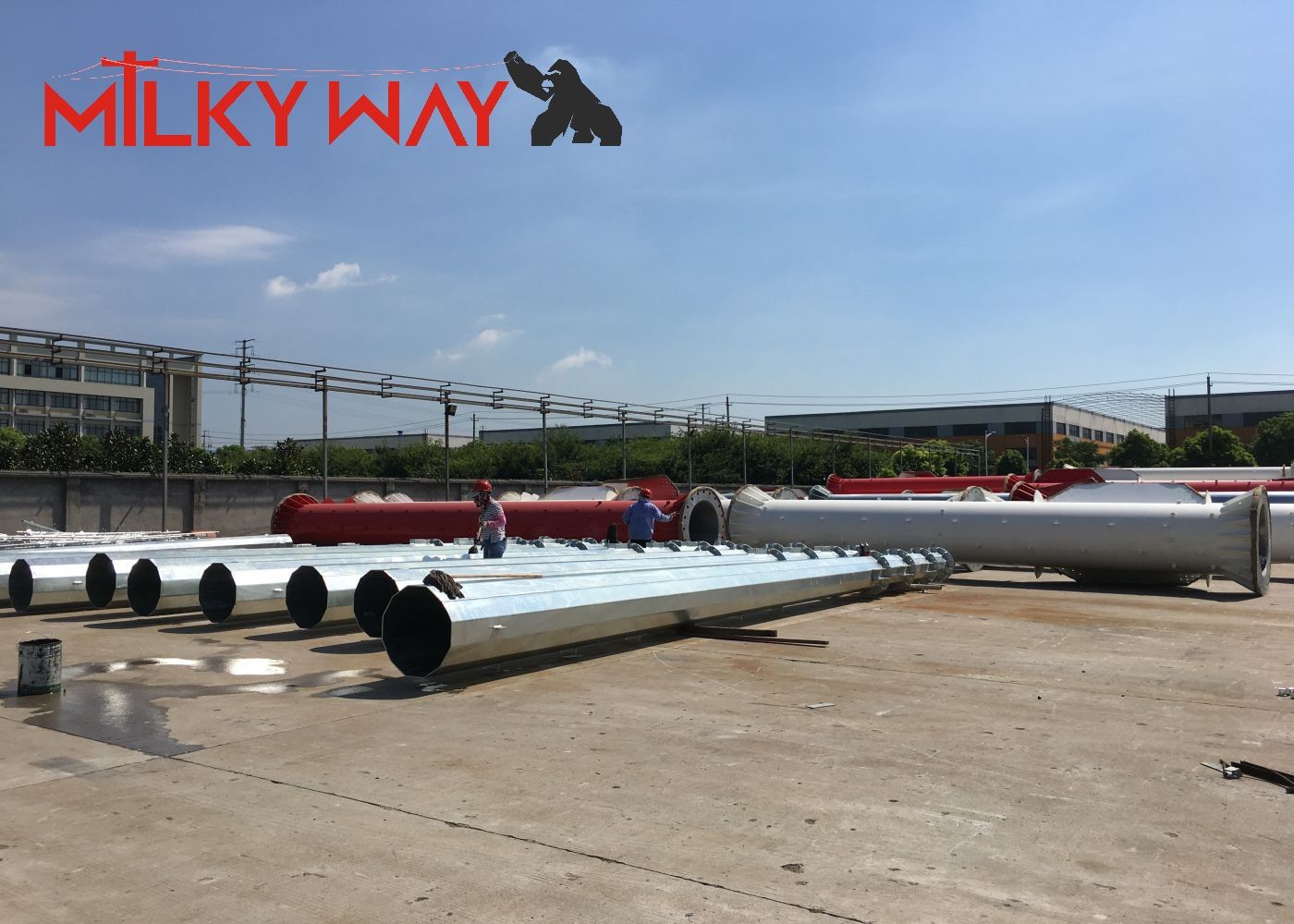

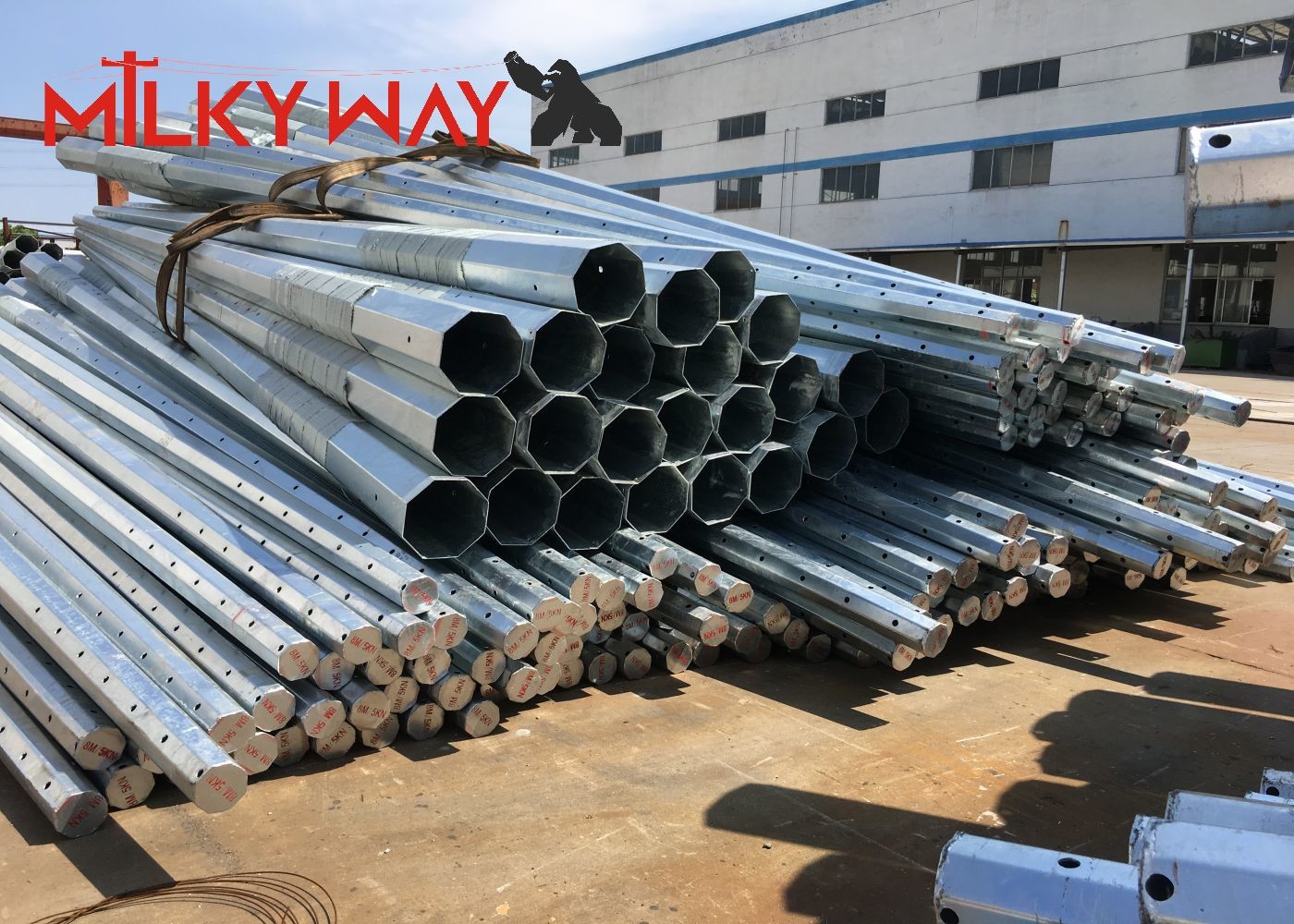

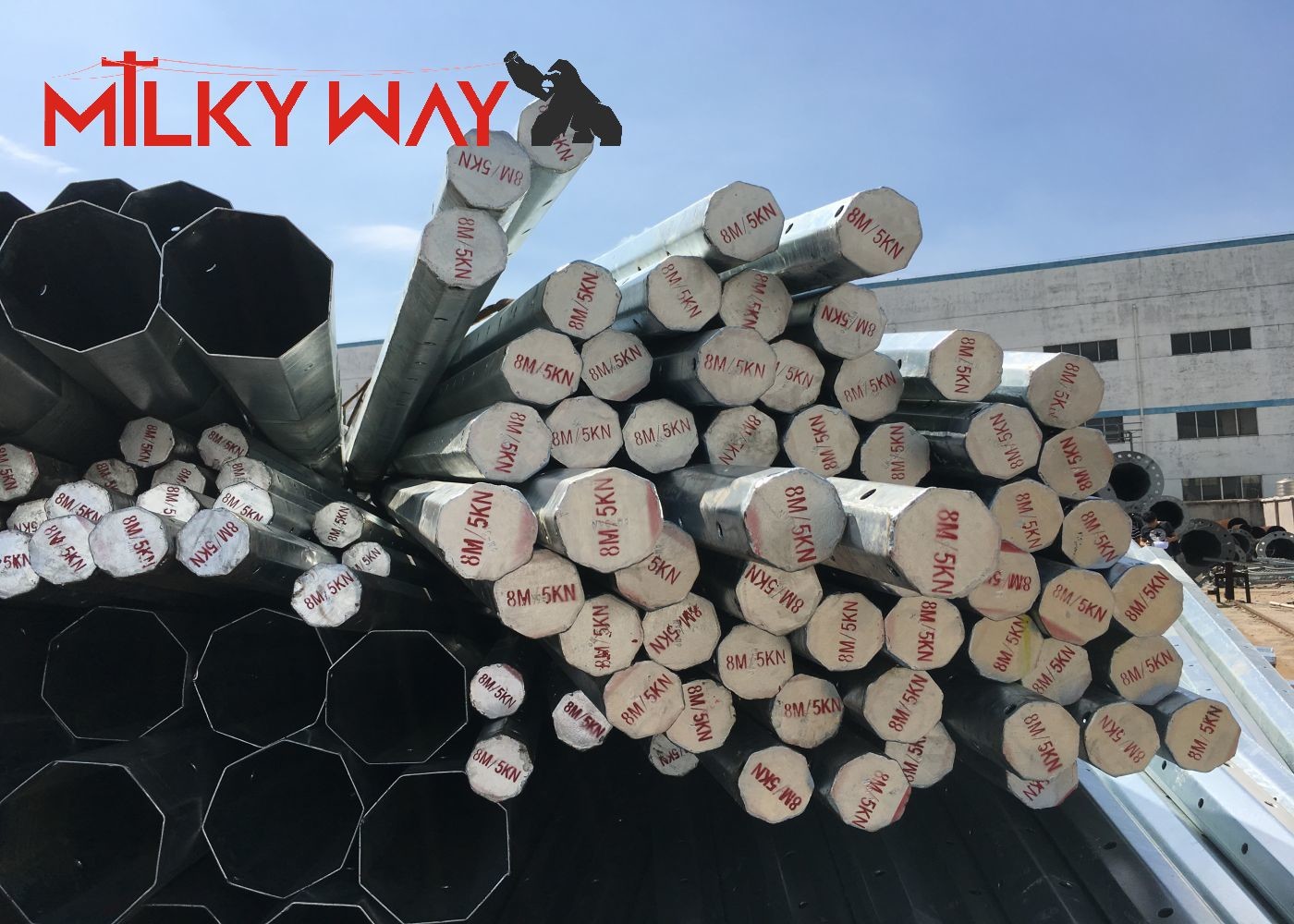

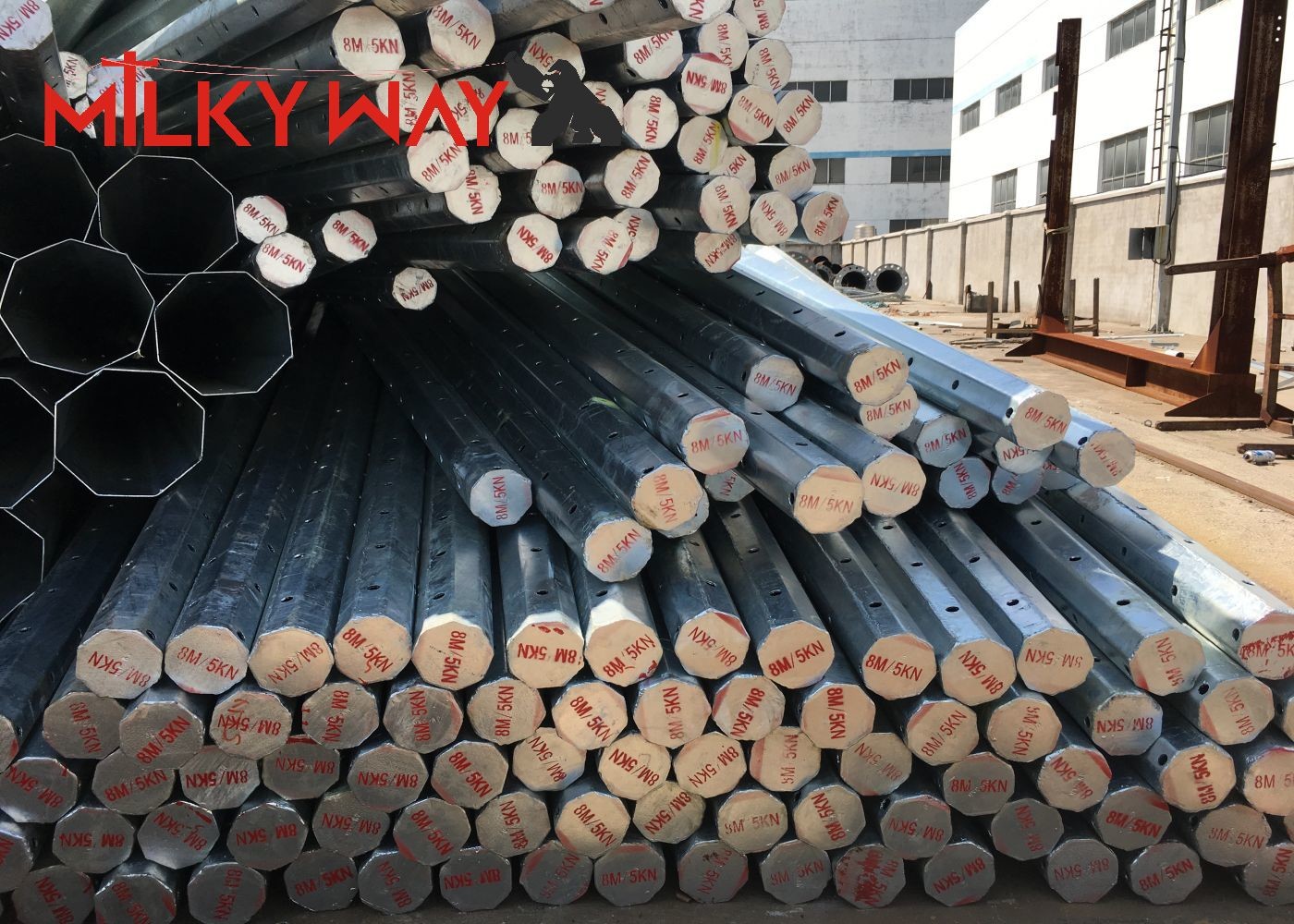

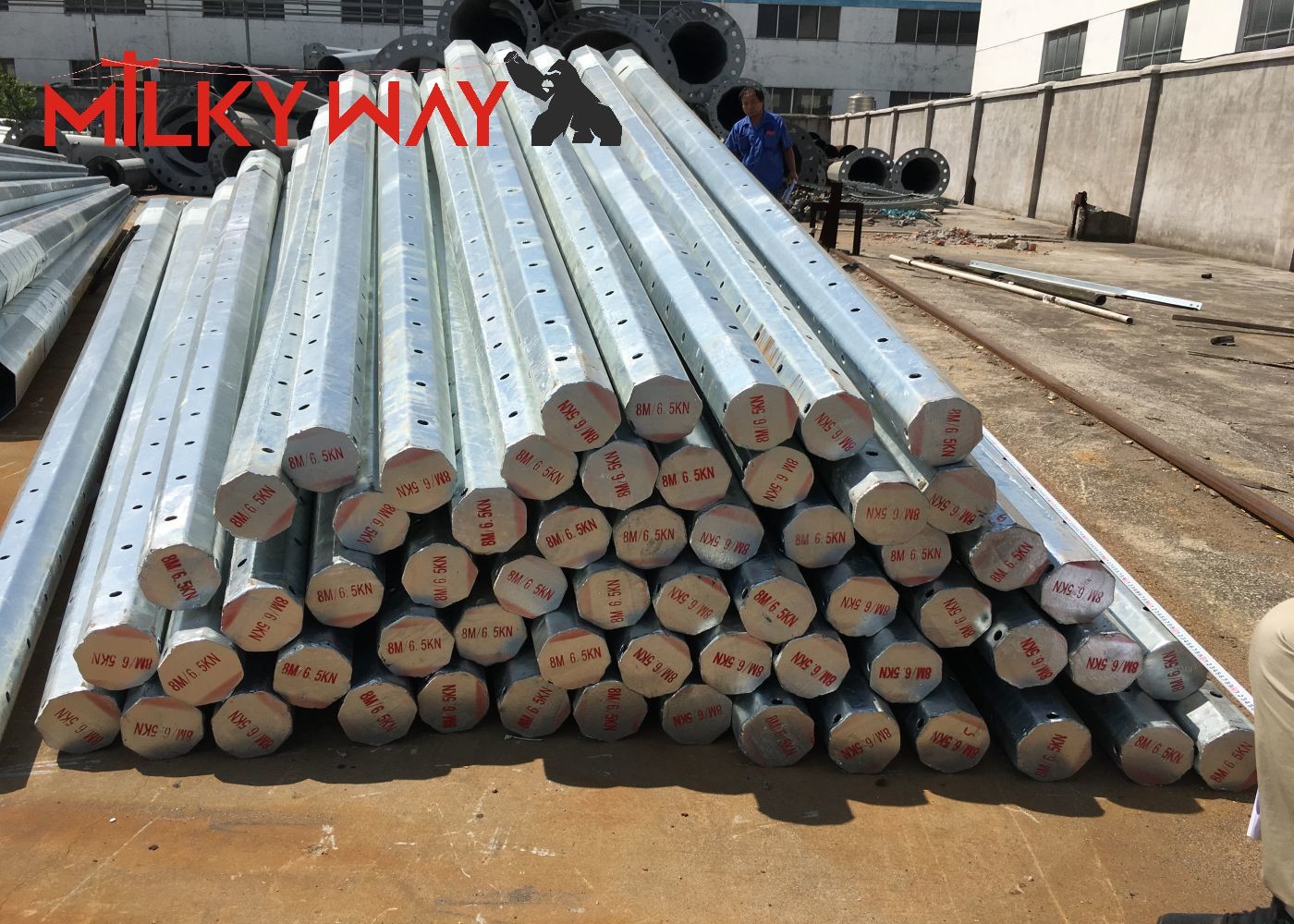

6mm Galvanized Steel Power Transmission Poles
High-performance, long-lasting galvanized steel poles for power transmission applications from 10kV to 220kV.
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Galvanized Power Pole |
| Shape | Octagonal Or Round |
| Power Capacity | 10kV to 220kV |
| Joint of Poles | Slip joint |
| Warranty time | 15 years |
| Thickness | 1 mm to 36mm |
Premium Steel Materials
All materials are sourced from renowned mill factories to ensure superior quality. Each shipment includes:
- Mill certificate with official stamp and signature
- Rigorous chemical and physical analysis before production
- Verified strength and component specifications
Detailed Specifications
| Types | Length | 45ft (13.75m) | 50ft (15.25m) | 55ft (16.80m) | 60ft (18.30m) | 65ft (19.85m) | 70ft (21.35m) |
|---|---|---|---|---|---|---|---|
| B (0°-2°) | Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 | |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 | |
| E (2°-15°) | Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
| Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 | |
| Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Manufacturing Tolerances
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1° per 3 meters length
- Ovalisation: Maximum 3%
- Average diameter: +/-0.5%
- Slip length: +/-150mm
Welding Standards
Our welding process meets the highest quality standards:
- Internal and external double welding for superior strength
- Certified flaw testing
- Compliance with AWS (American Welding Society) D 1.1 standard
Surface Treatment
Hot dip galvanized following ASTM A 123 standards. Custom treatments available including color polyester powder coating to meet client requirements.
Company Profile
Jiangsu Milky Way Steel Poles, established in 1991 and located in Wuxi, China, brings over 24 years of expertise in manufacturing:
- Transmission power poles
- Street light poles
- High mast poles
Our products have been exported to over 70 countries worldwide, including major projects such as:
- Street light poles for Dubai Tower
- High mast poles for Sochi Winter Olympic Games
