Aperçu /Produits/poteau de puissance en acier/Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution

Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution

1pcs
MOQ
Négociable
Prix
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Matériel: Acier, GR65, avec une résistance minimale de 460mpa
Couleur: Personnalisé
Traitement de surface: Galvanisation de la hanche chaude
Norme de galvanisation: Pour l'utilisation de la méthode ASTMA123
Garantie: 15 ans
Tension nominale: 10-550V
Mettre en évidence:

15 Years Warranty Steel Power Pole

,

160 Km/Hour Wind Speed Electricity Distribution Pole

,

Hot Dip Galvanized Galvanized Steel Pole
Informations de base
Lieu d'origine: Jiangsu, Chine
Nom de marque: Milky Way
Certification: ISO9001/BV/
Numéro de modèle: Puissance Polonais en acier
Conditions de paiement et expédition
Détails d'emballage: Comme demande du client
Délai de livraison: 20 jours ouvrables après réception de votre paiement
Capacité d'approvisionnement: 300pcs par jour
Description de produit
Steel Power Pole for Electricity Distribution with Hot Dip Galvanization and Customizable Color Option
Hot Dip Galvanised Steel Power Pole 70FT 94FT With Minimum Yield Strength 460mpa
Specifications
Application Electricity distribution
Shape Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material Usually Q345B/A572, minimum yield strength>=345n/mm2
Q235B/A36, minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490
Tolerance of dimension +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wire: 8
Safety factor for grounding wire: 8
Design Load in Kg 300~1000 Kg applied to 50cm from the top pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required
Joint of Poles Insert mode, inner flange mode, face to face joint mode
Wind Speed 160 Km/Hour (30 m/s)
Standard ISO 9001
Welding We have passed flaw testing. Internal and external double welding makes the welding beautiful in shape.
Welding Standard: AWS (American Welding Society) D 1.1
Galvanization Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985
Thickness 1 mm to 30 mm
Production Process Raw material test → Cutting → Molding or bending → Welding (longitudinal) → Dimension verify → Flange welding → Hole drilling → Calibration → Deburr → Galvanization or powder coating, painting → Recalibration → Thread → Packages

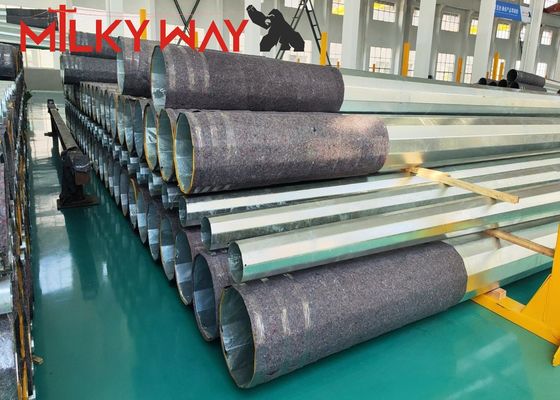

Packages Our poles are normally covered by Mat or straw bale at the top and bottom, but can also follow client requirements. Each 40HC or OT loading capacity will be calculated based on the client's actual specifications and data.
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution 0
Certification
Hot Dip Galvanized Steel Power Pole with 15 Years Warranty and 160 Km/Hour Wind Speed for Electricity Distribution 1
Our Company

Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East of China, near one of the largest sea ports of China, Shanghai Port. Our products have been widely used in power transmission, signal transmission and lighting for street, road, square, palaestra, and more.

We have extensive export experience. Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles, our products have been delivered to more than 70 countries and areas, including America, Australia, Russia, Germany, Spain, Philippines, Malaysia, Dominica, Congo, Togo and Guinea.
